Product Details
- Size: 1M 2M 3M
- Place of Origin: hebei
- Brand Name: tiankuo
- Model Number: TK
- Weight: 20.000 kg

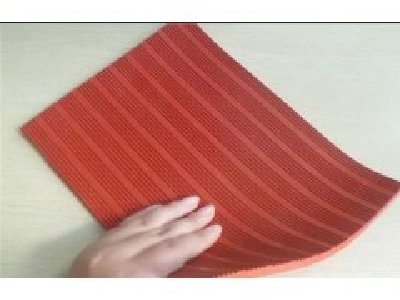

1 insulation plate technical parameters:
According to the voltage level can be divided into: 5kV, 10kV, 20kV, 25kV, 35kV, 500kV etc..
The color can be divided into: black rubber insulation, insulation rubber insulation rubber red, green.
According to the thickness can be divided into: 2mm, 3mm, 4mm, 5mm, 6mm, 8mm, 10mm, 12mm
2 insulation plate appearance and size:
Speckling or concave and convex portions of the depth or height shall not exceed the plywood thickness tolerances, bubbles per square meters, with an area of not in 1cm2 bubble does not exceed 5, between any two bubble distance of not less than 40mm, which the depth and length of the impurity does not exceed plywood thickness not less than 40mm, rubber edge margin not neat or cavernous part width does not exceed 10mm, the length of not more than plastic sheet with a total length of 1 / 10, and does not allow cracks.
The 3 insulating sheet process and forming:
Under the surface of the insulating board should not exist irregularities harmful. Harmful irregular is refers to one of the following characteristics, destroying uniformity, damaged surface smooth contour defects, such as holes, cracks, local uplift, incision, inclusion conducting foreign body, crease, voids, concave convex corrugated and casting signs. Irregular harmless is formed on the surface during the production of irregular.
4 the thickness of the insulating sheet:
Should be randomly selected in the insulating plate more than 5 different point thickness measurement and inspection. Measuring instrument can be used in 1000 heart or the same precision. Micrometer precision should be within 0.02mm, measuring drill diameter is 6mm, flat presser foot diameter for (3.17 + 0.25 mm), presser foot can be applied (0.83 + 0.03) n pressure. Insulation board should be laid flat, to make between the micrometer is smooth.
The 5 insulation plates using range and storage:
Widely used in power plant, substation, power distribution room, test and field work using charged roommate.
The insulation board should be stored in a special box, avoid direct sunlight, rain leaching, prevent extrusion and sharp collision.
According to the voltage level can be divided into: 5kV, 10kV, 20kV, 25kV, 35kV, 500kV etc..
The color can be divided into: black rubber insulation, insulation rubber insulation rubber red, green.
According to the thickness can be divided into: 2mm, 3mm, 4mm, 5mm, 6mm, 8mm, 10mm, 12mm
2 insulation plate appearance and size:
Speckling or concave and convex portions of the depth or height shall not exceed the plywood thickness tolerances, bubbles per square meters, with an area of not in 1cm2 bubble does not exceed 5, between any two bubble distance of not less than 40mm, which the depth and length of the impurity does not exceed plywood thickness not less than 40mm, rubber edge margin not neat or cavernous part width does not exceed 10mm, the length of not more than plastic sheet with a total length of 1 / 10, and does not allow cracks.
The 3 insulating sheet process and forming:
Under the surface of the insulating board should not exist irregularities harmful. Harmful irregular is refers to one of the following characteristics, destroying uniformity, damaged surface smooth contour defects, such as holes, cracks, local uplift, incision, inclusion conducting foreign body, crease, voids, concave convex corrugated and casting signs. Irregular harmless is formed on the surface during the production of irregular.
4 the thickness of the insulating sheet:
Should be randomly selected in the insulating plate more than 5 different point thickness measurement and inspection. Measuring instrument can be used in 1000 heart or the same precision. Micrometer precision should be within 0.02mm, measuring drill diameter is 6mm, flat presser foot diameter for (3.17 + 0.25 mm), presser foot can be applied (0.83 + 0.03) n pressure. Insulation board should be laid flat, to make between the micrometer is smooth.
The 5 insulation plates using range and storage:
Widely used in power plant, substation, power distribution room, test and field work using charged roommate.
The insulation board should be stored in a special box, avoid direct sunlight, rain leaching, prevent extrusion and sharp collision.
